EverCore
Three Phase C&l Energy Storage Inverters

S6-EH3P(50-60)K-H(21A)

50K / 60K

Product Introduction

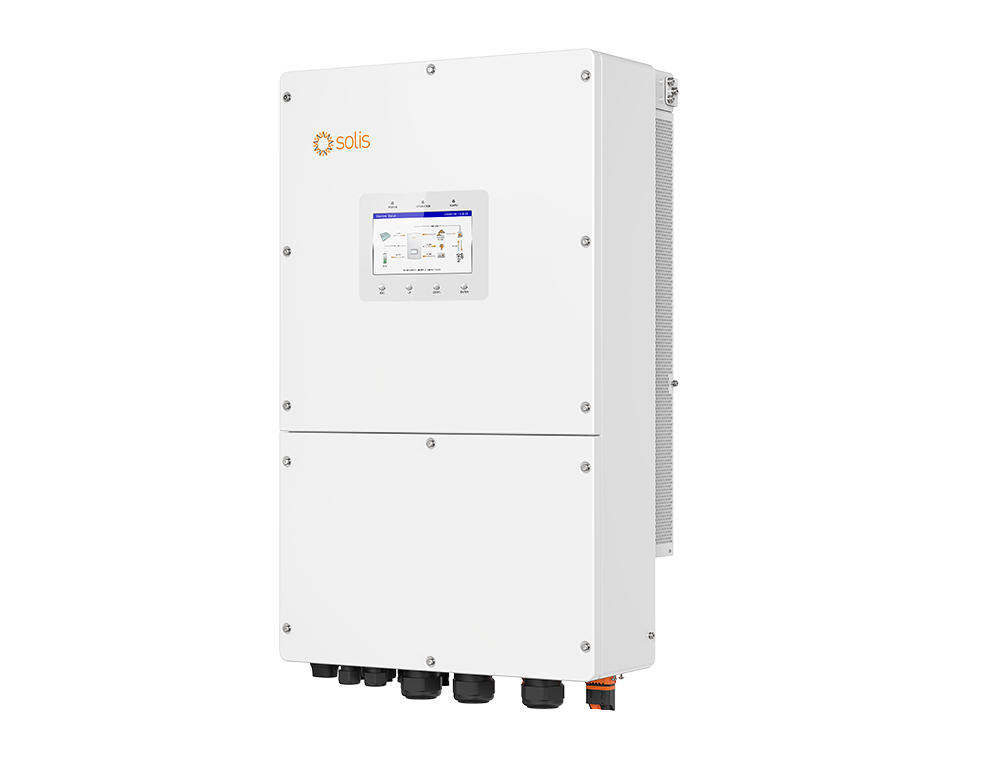

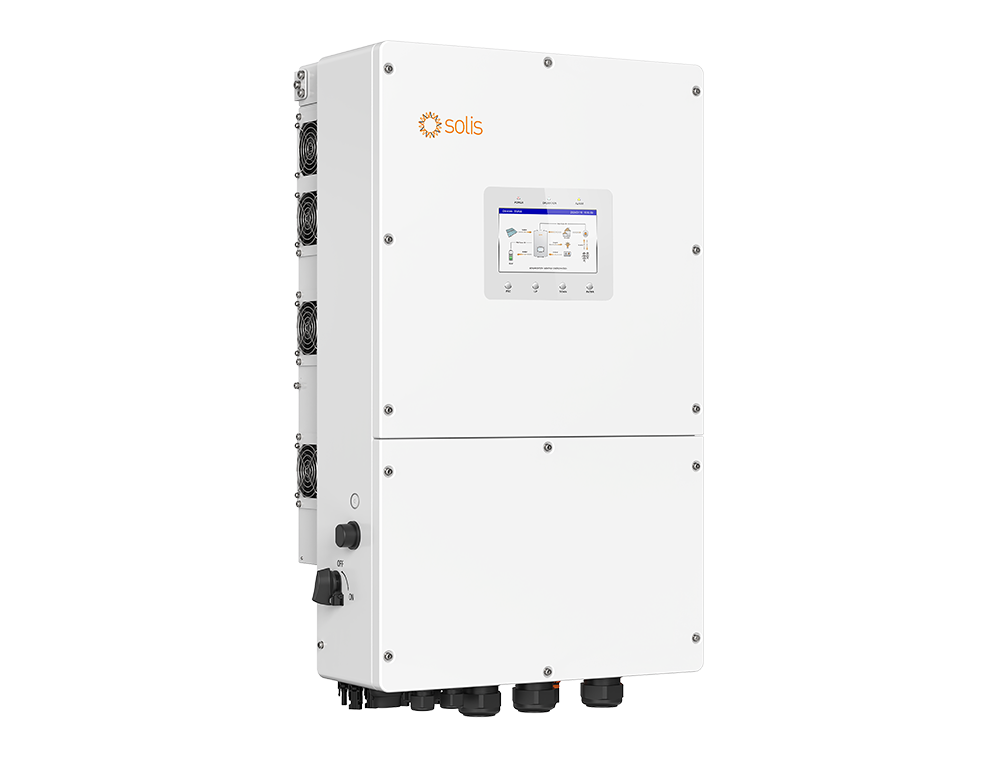

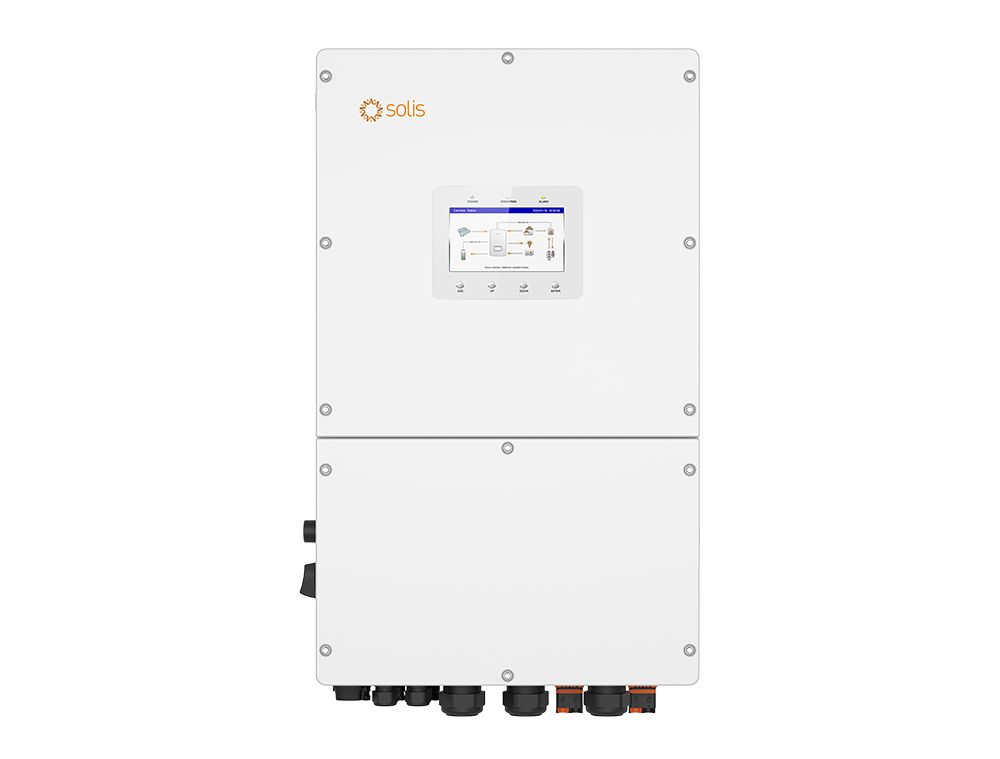

Introducing the Solis S6-EH3P(50-60)K-H((21A) Series – a high-voltage, three-phase energy storage inverter designed for commercial applications and compatible with 3Φ 380V/400V grids. This inverter series delivers a maximum charge and discharge current of 84A + 84A (60K) across two independently controlled battery ports. It also features four integrated MPPTs with a string current capacity of up to 21A, ensuring superior power performance. Whether for on-grid or off-grid use, the S6-EH3P(50-60)K-H((21A) series supports parallel operation of up to ten units, with a backup port capable of handling 1.6 times overload for short durations. Thanks to its wide battery voltage range, the series is compatible with a broad selection of batteries and supports peak shaving control in both self-use and generator modes - delivering flexible, efficient, and scalable energy storage for commercial installations.

Technical Specifications

    S6-EH3P(50-60)K-H(21A)

    Input DC (PV side)

    Max. input voltage: 1000V

    MPPT voltage range: 150 - 850V

    MPPT number: 4

    Output AC (Back-up)

    Rated output power: 50kW / 60kW

    Rated output voltage: 3/N/PE, 220V / 380V, 230V / 400V

    Efficiency

    Max. efficiency: 97.7%

    General Data

    Ingress protection: IP66

Leading Features

SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform

Integrates PV and storage for demand management and anti-reverse flow functions

Provides dynamic reactive power compensation to improve grid power factor and reduce reactive power charges

Supports PV input up to 100kW, maximising solar utilisation

Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules

Compatible with 100–314Ah battery modules, reducing overall system costs

Supports fast battery charging with a maximum charging current of 168A

Two independent battery ports for flexible configurations and easy capacity expansion

Delivers 160% overload for 2s in off-grid mode, ensuring stable startup of heavy loads

Offers flexible control for weak grid and genset-hybrid scenarios, reducing investment costs

Supports both DC and AC coupling, for flexible retrofits and system expansions

Ensures reliable backup power across diverse scenarios through battery reserve management

Extends supply time for critical loads with intelligent load prioritization

Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators

Achieves on- and off-grid transitions in less than 10ms, ensuring an uninterrupted power supply

Supports multi-unit parallel operation up to 600kW (Solis STS cabinet recommended for systems over 6 units)
