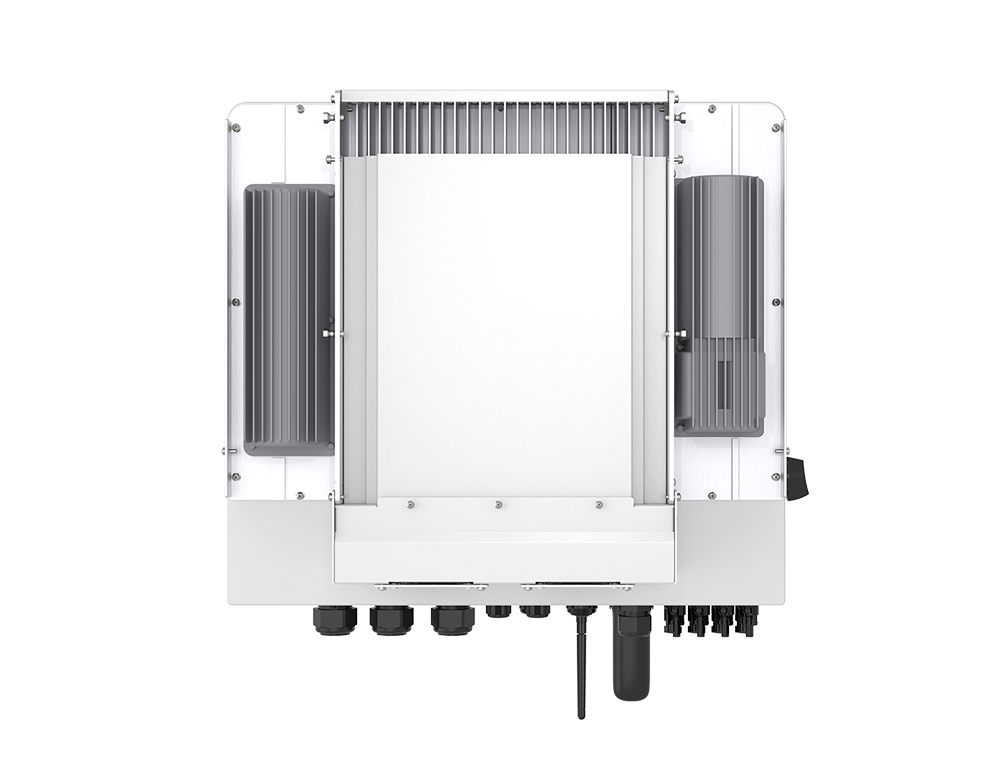

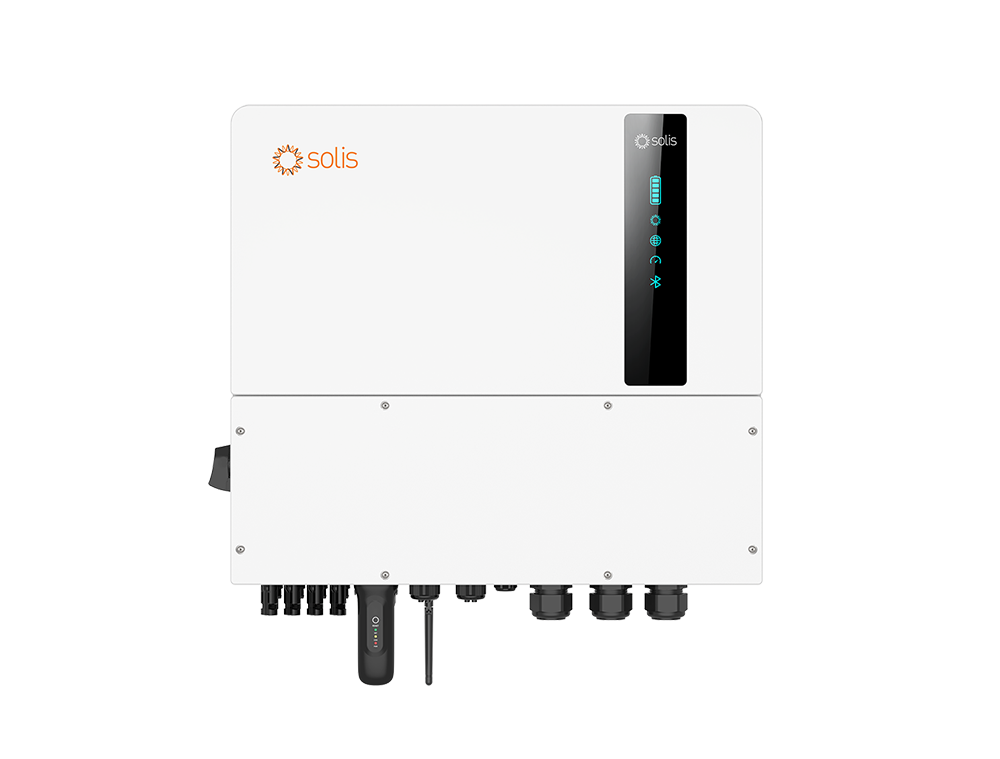

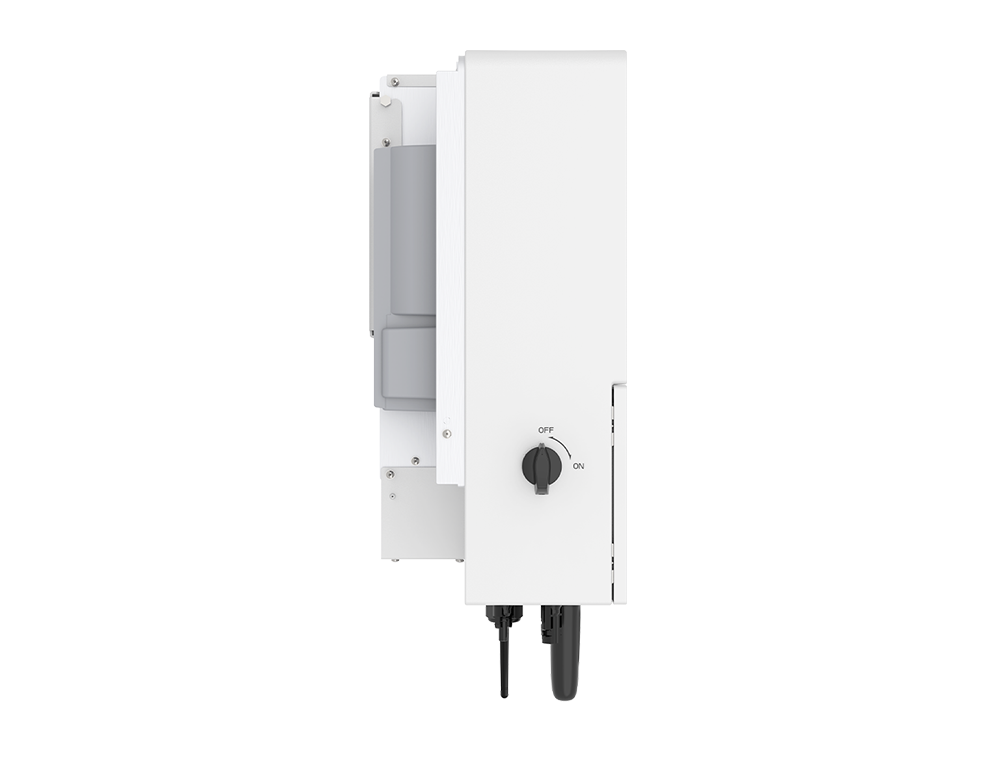

Three Phase Residential Energy Storage Inverters

S6-EH3P(8-12)K-LV-ND-H

8K-LV / 10K-LV / 12K-LV

Product Introduction

The S6-EH3P(8-12)K-LV-ND-H series three-phase hybrid inverters are suitable for large residential and small commercial PV energy storage systems with a 230VAC grid. Its charge and discharge capacity of 50A/12kW allows you to quickly capture more solar energy during the day for consumption at night. The product has a strong load capacity and supports three-phase unbalanced output and half-wave load. The product also has a rich set of functions to provide you with a better green experience.

Technical Specifications

    S6-EH3P(8-12)K-LV-ND-H

    Input DC (PV side)

    Max. input voltage: 1000V
    MPPT voltage range: 200-850V
    MPPT number: 4

    Output AC (Back-up)

    Rated output power: 8kW / 10kW / 12kW
    Rated output voltage: 3/(N)/PE, 133V / 230V

    Efficiency

    Max. efficiency: 96.7%

    General Data

    Ingress protection: IP66

Datasheet Download

Leading Features

High Performance:Supports three-phase unbalanced output, allowing up to 40% of rated inverter power per phase

160% PV input capacity to maximize solar energy utilization Switching time < 10ms

Flexible & Scalable:Compatible with mainstream lithium batteries Easily expand system capacity using parallel connections and AC coupling

Simple & Fast Configuration:Bluetooth app support for quick and easy setup

Smart Energy Management:Seamless integration with VPP and EMS platforms for enhanced energy optimization Built-in control for SG-ready heat pumps

Redefining C&I Storage

Downloads

Datasheet Certificate Manual
S6-EH3P(8-12)K-ND-Global-Datasheet-V3.8
CE_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(-ND-H) Certificate_EN_50549-1_EN_50549-10_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(-ND-H)_EUR_V02 Certificate_EN_62109-1(-2)_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(-ND-H)_Safety_V02 Certificate_EN_IEC_61000-6-1(-2)(-3)(-4)_EN_55011_EN_62920_EN_301489_EN_300328_EN_50663_EN_62109_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(- Certificate_IEC_61000-6-1(-2)(-3)(-4)_IEC_61000-3-2(-3)(-11)(-12)_IEC_62920_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(-ND-H)_EMC_V02 Certificate_IEC_EN_62109-1(-2)_S6-EH3P(12-20)K-H(-ND-H)_S6-EH3P(8-12)K-LV-H(-ND-H)_Safety_V02
Manual_S6-EH3P(8-12)K-LV-ND-H_EUR_V1.2
