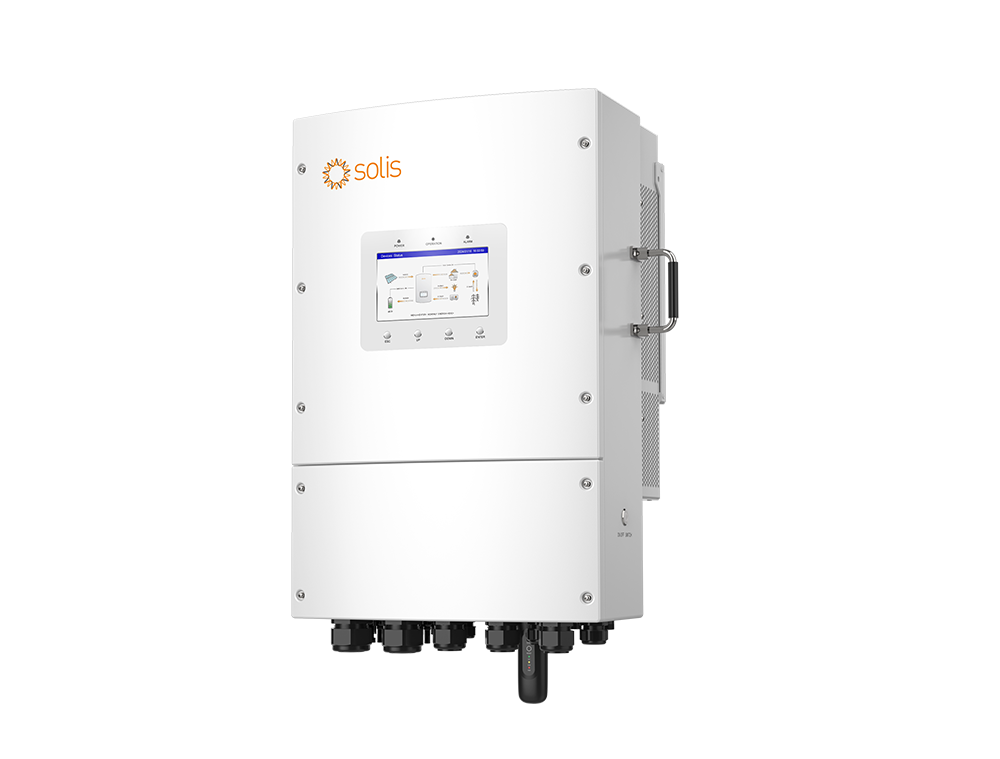

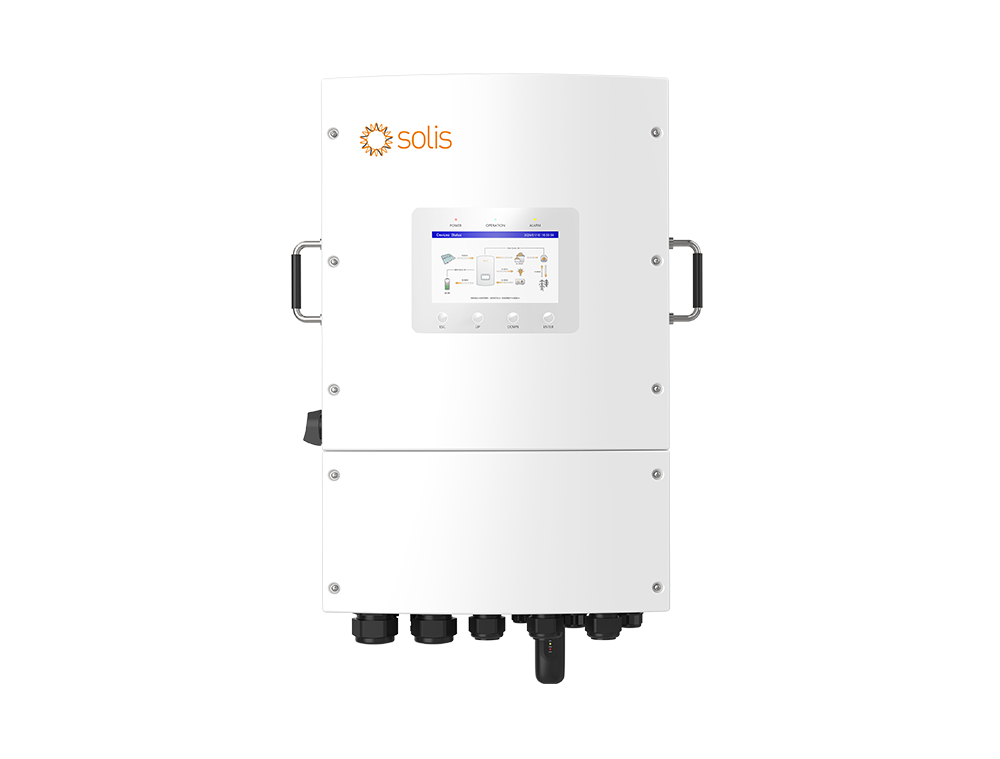

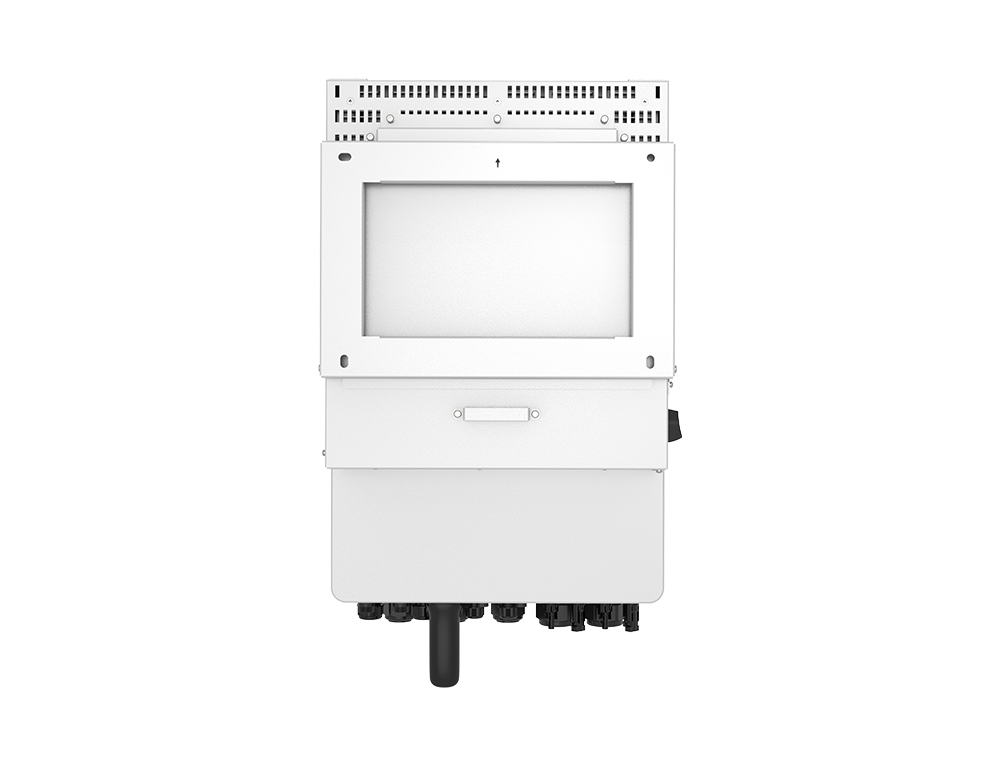

Three Phase Residential Energy Storage Inverters

S6-EH3P(7-10)K02-LV-YD-L

7K02-LV / 8K02-LV / 9K02-LV / 10K02-LV

Product Introduction

S6-EH3P(7-10)K02-LV-YD-L string hybrid inverter is a cost-effective option for residential home，which with three-phase 230VAC grid need install PV energy storage plants. The products are lightweight, efficient, feature-rich, and available in a variety of power models，and support 40~60V lead-acid or lithium batteries, and compatible with most mainstream battery brands, convenient for customers to flexibly choose batteries according to budget; In addition, it also includes independent Smart ports, UPS level switching, supporting three-phase unbalanced load and half-wave load, etc. To help users create a more economical and intelligent zero-carbon PV energy storage solution.

Technical Specifications

    S6-EH3P(7-10)K02-LV-YD-L

    Input DC (PV side)

    Max. input voltage: 1000 V
    MPPT voltage range: 200 - 850 V
    MPPT number: 2

    Output AC (Back-up)

    Rated output power: 7kW / 8kW / 9kW / 10kW

    Rated output voltage: 3/N/PE, 127V / 220V; 3/N/PE, 133V / 230V

    Efficiency

    Max. efficiency: 96.2%

    General Data

    Ingress protection: IP66

Datasheet Download

Leading Features

Smart Energy Management High Performance Flexible & Scalable Simple & Fast Configuration

Seamless integration with VPP and EMS platforms for enhanced energy optimization.

Switching time < 10ms

Supports 100% three-phase unbalanced output

Max. 200% overload capability in off-grid mode

160% PV input capacity to maximize solar energy utilization

Support max. 6 inverters in parallel

Compatible with mainstream lithium and lead-acid batteries

Easily expand system capacity using parallel connections and AC coupling

Bluetooth app support for quick and easy setup

7-inch LCD screen for an intuitive user experience

Redefining C&I Storage

Downloads

Datasheet Certificate Manual
S6-EH3P(7-10)K-Global-Datasheet-V3.8
Certificate_EN_IEC_IEC_61000-1(-2)(-3)(-4)_EN_55011_IEC_EN_62920_S6-EH3P(8-18)K02-NV-YD-L(-AU)_S6-EH3P(7-10)K02-LV-YD-L_EMC_V03 Certificate_IEC_EN_62109-1(-2)_IEC_62477_S6-EH3P(8-18)K02-NV-YD-L_S6-EH3P(7-10)K02-LV-YD-L_safety_V03(mark) Certificate_IEC_EN_62109-1(-2)_IEC_62477_S6-EH3P(8-18)K02-NV-YD-L_S6-EH3P(7-10)K02-LV-YD-L_safety_V03
Manual_S6-EH3P(7-9)K02-NV-YD-L_EUR_V1.3 Manual_S6-EH3P10K02-NV-YD-L_EUR_V1.0
