EverCore
Single Phase Residential Energy Storage Inverters

S6-EH1P(9.9-18)K03-NV-YD-L

9.9K03 / 12K03 / 14K03 / 16K03 / 18K03

Product Introduction

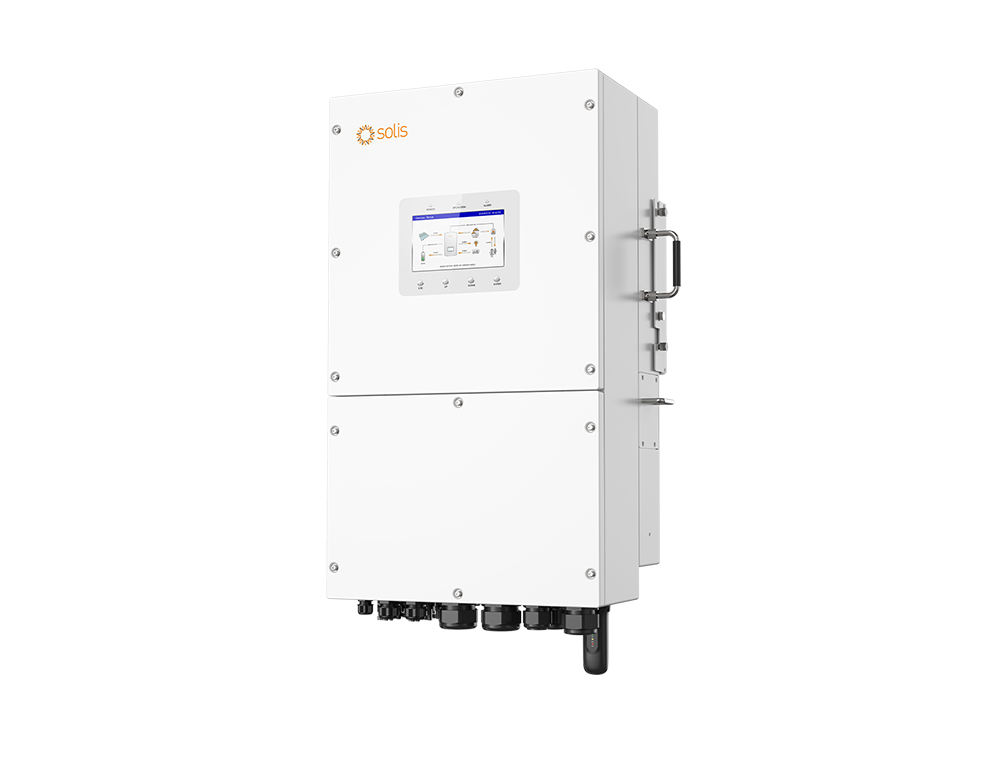

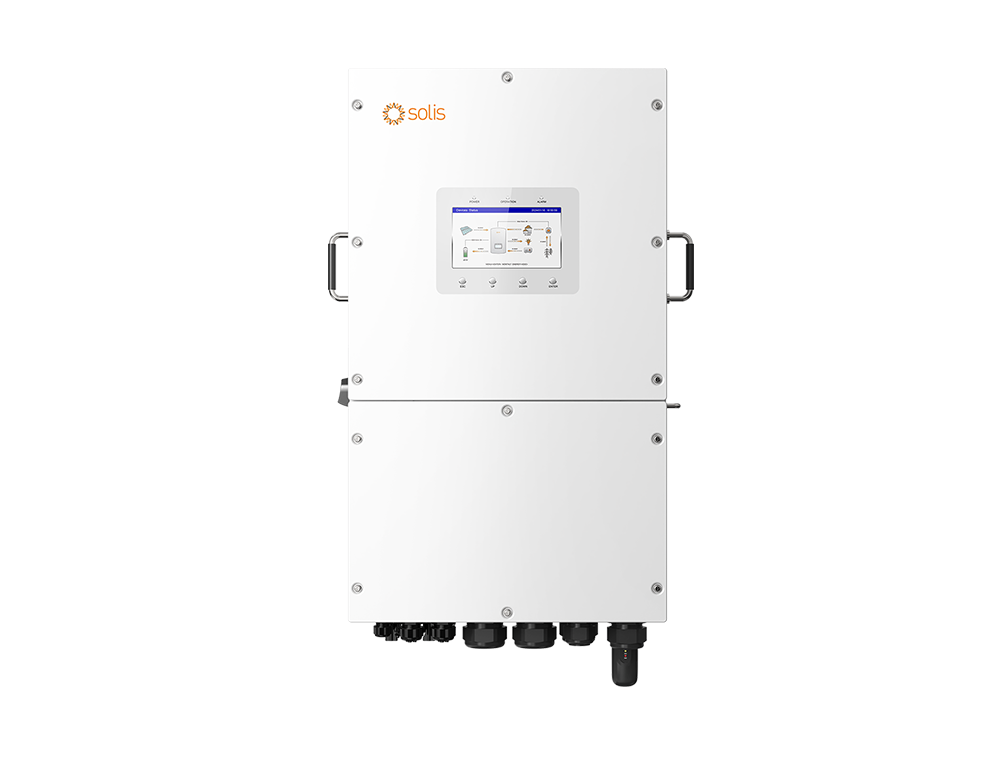

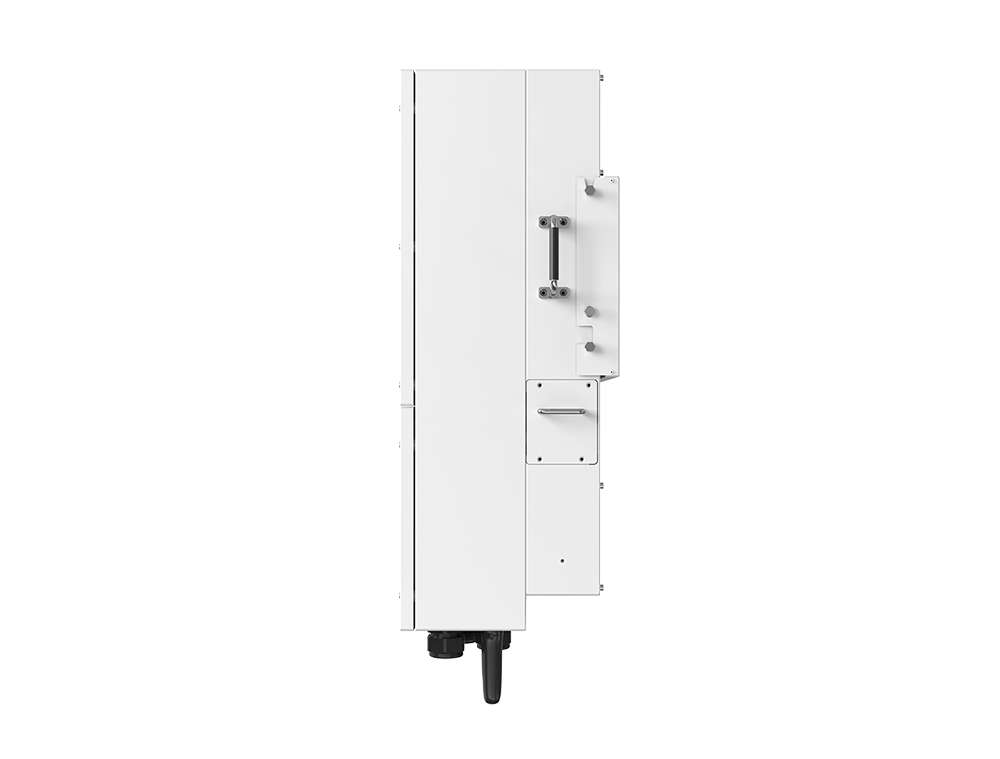

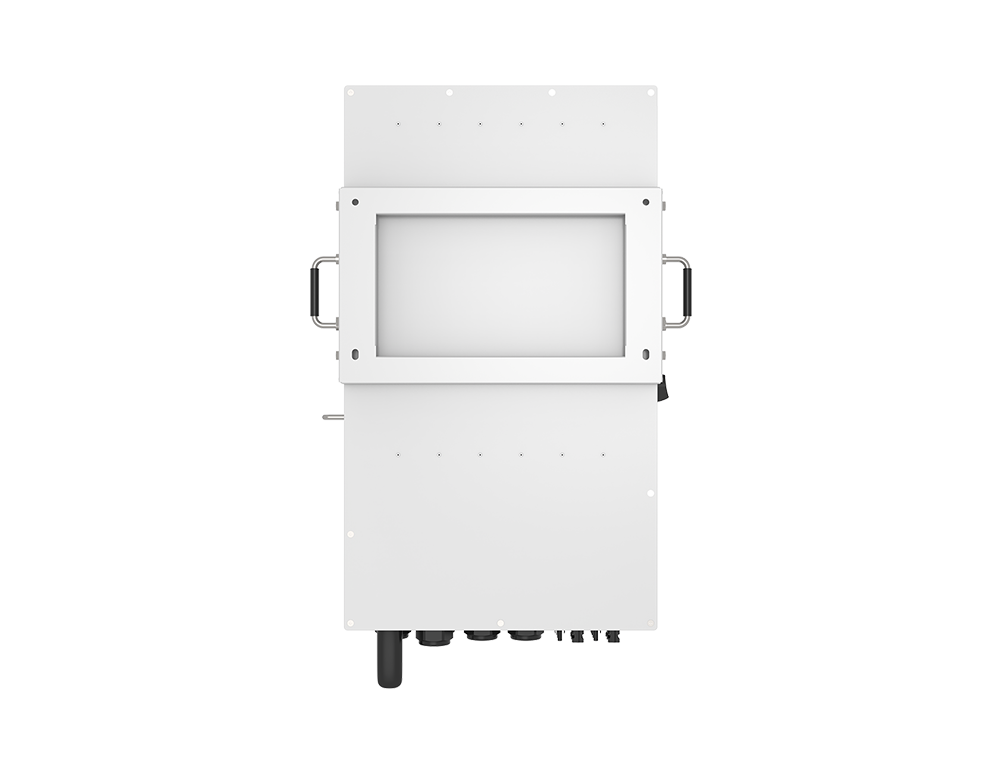

S6-EH1P(9.9-18)K03-NV-YD-L single-phase hybrid inverter with low battery voltage(40-60V). This advanced inverter series have 3 integrated MPPTs and each MPPT current capacity of up to 20A, and suitable for a variety of brands' lithium and lead-acid batteries. Designed for both on and off-grid applications, the S6-EH1P(9.9-18)K03-NV-YD-L series have a wealth of features, including compatible generators, grid-tied inverters, parallel operation, smart load management and etc.—making a scalable solution for residential energy storage.

Technical Specifications

    S6-EH1P(9.9-18)K03-NV-YD-L

    Input DC (PV side)

    Max. input voltage: 550 V

    MPPT voltage range: 80 - 520 V

    MPPT number: 3

    Output AC (Back-up)

    Rated output power: 9.9kW / 12 kW / 14 kW / 16 kW / 18 kW

    Rated output voltage: L/N/PE, 220V / 230V

    Efficiency

    Max. efficiency: 97.6%

    General Data

    Ingress protection: IP66

Leading Features

Supports PV input up to 160% of the inverter's rated DC power, maximising solar utilisation.

Supports up to 20A PV input current, compatible with future higher-power PV modules.

200% overload for 10s in off-grid mode, ensuring stable startup of motors, water pumps and air conditioners.

Seamless on/off-grid switching in under 10ms, guaranteeing an uninterrupted power supply.

More battery options, compatible with any battery (between 40V-60V)

Supports existing PV grid-tied power connection for export control and off-grid use.

Multiple methods of generator connection and auto control, enabling flexible local deployment.

Support max 6 units in parallel, expanding system capacity.

Smart Load management, extending backup time for critical loads.

Customizable battery backup level for uninterrupted power.

Supports PV-only off-grid operation, reducing upfront costs.

SolisCloud: Smart remote control, AI optimisation, and instant troubleshooting - all in one platform.

7-inch industrial-grade touchscreen, providing a larger, user-friendly interface for local operation.

Ingress protection IP66, for operation in harsh conditions.
