Residential Energy Storage Batteries
SolisStor-(5-40)kWh-L-ST-66
5kWh / 10kWh / 15kWh / 20kWh / 25kWh / 30kWh / 35kWh / 40kWh
SolisStor-(5-40)kWh-L-ST-66

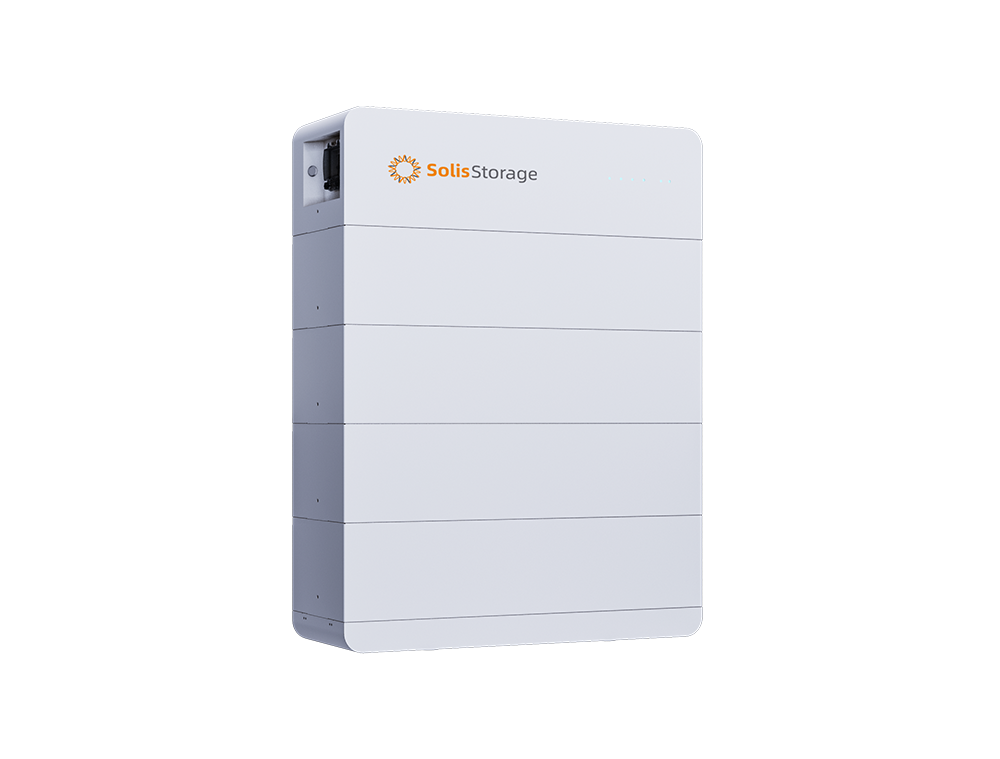

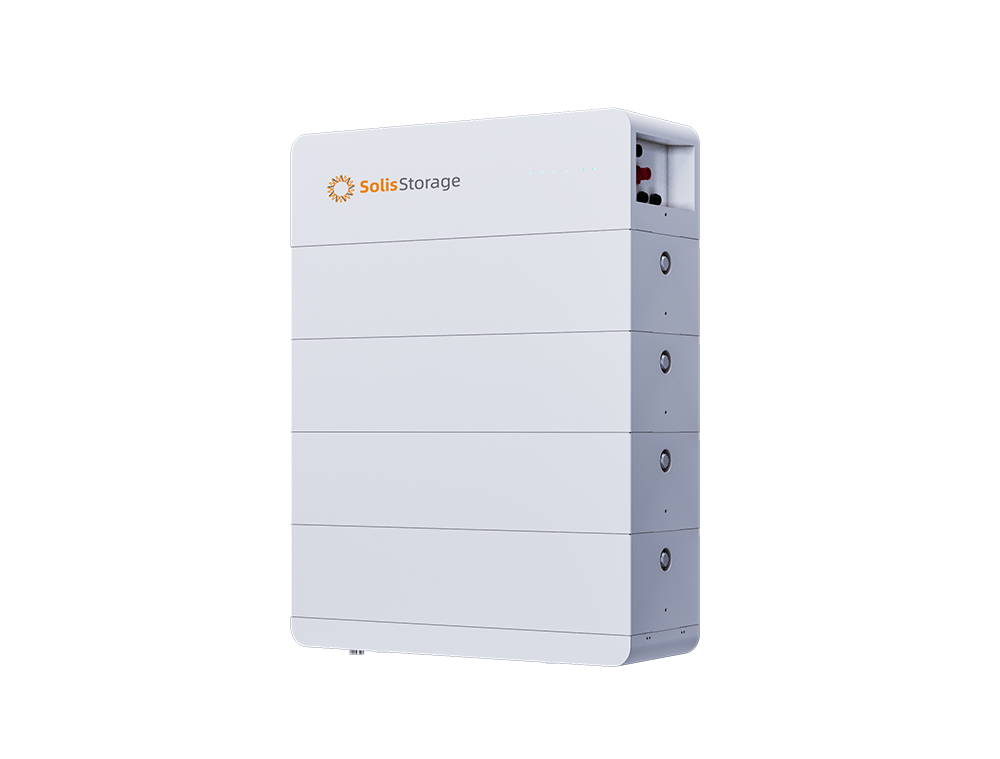

SolisStor-(5-40)kWh-L-ST-66 Series low-voltage lithium batteries are specifically designed for high-capacity home energy storage, featuring multiple models. This series utilizes high-performance LFP cells, with each battery unit operating as an independent module. It supports parallel expansion with up to 4 units and is equipped with an intelligent Battery Management System (BMS) to ensure safe and stable operation. It efficiently increases the self-consumption rate of household electricity while providing reliable backup during power outages.
Battery type: LiFePO4
Nominal capacity:5.1kWh
Usable capacity:4.6kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:100Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:50A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:10.2kWh
Usable capacity:9.2kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:200Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:100A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:15.3kWh
Usable capacity:13.2kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:300Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:150A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:20.4kWh
Usable capacity:18.4kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:400Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:200A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:25.5kWh
Usable capacity:23kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:500Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:250A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:30.6kWh
Usable capacity:27.6kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:600Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:300A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:35.7kWh
Usable capacity:32.13kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:700Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:320A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Battery type: LiFePO4
Nominal capacity:40.8kWh
Usable capacity:36.72kWh
Operating voltage:44.8 - 57.6V
Rated cell capacity:800Ah
Recommended charge/discharge rate:0.5C
Recommended charge/discharge current:320A
Cycle life: >6000 Cycles (@25°C, 0.5C/0.5C, 70% EOL@90% DOD) / 10years
Powered by first-tier lithium iron phosphate (LFP) battery cells, delivering a cycle life of over 6,000 cycles. This ensures long-term durability, stable performance, and enhanced safety—making the system more reliable, cost-effective, and worry-free over time.
Built-in professional fire-suppression module and independent thermal insulation structure, effectively mitigating thermal runaway risks at the source and providing comprehensive protection for household power safety.
C5-grade anti-corrosion treatment, designed to withstand coastal, humid, and high-temperature environments. With minimal site requirements, the system can be flexibly installed in a wide range of scenarios, including villas, balconies, and residential rooftops.
Perfectly compatible with the full Solis inverter portfolio, featuring automatic recognition for seamless integration. No complex commissioning is required—easy to operate, even for first-time users.
Supports remote inverter upgrades, enabling system optimization without on-site visits. This significantly reduces operation and maintenance costs and ensures a hassle-free user experience throughout the product lifecycle.
Ultra-low self-discharge rate of less than 3% per month, allowing the battery to retain sufficient energy even during long periods of inactivity. Always ready for emergency use, and combined with an intelligent sleep mode, it further reduces unnecessary energy consumption and improves overall energy efficiency.
