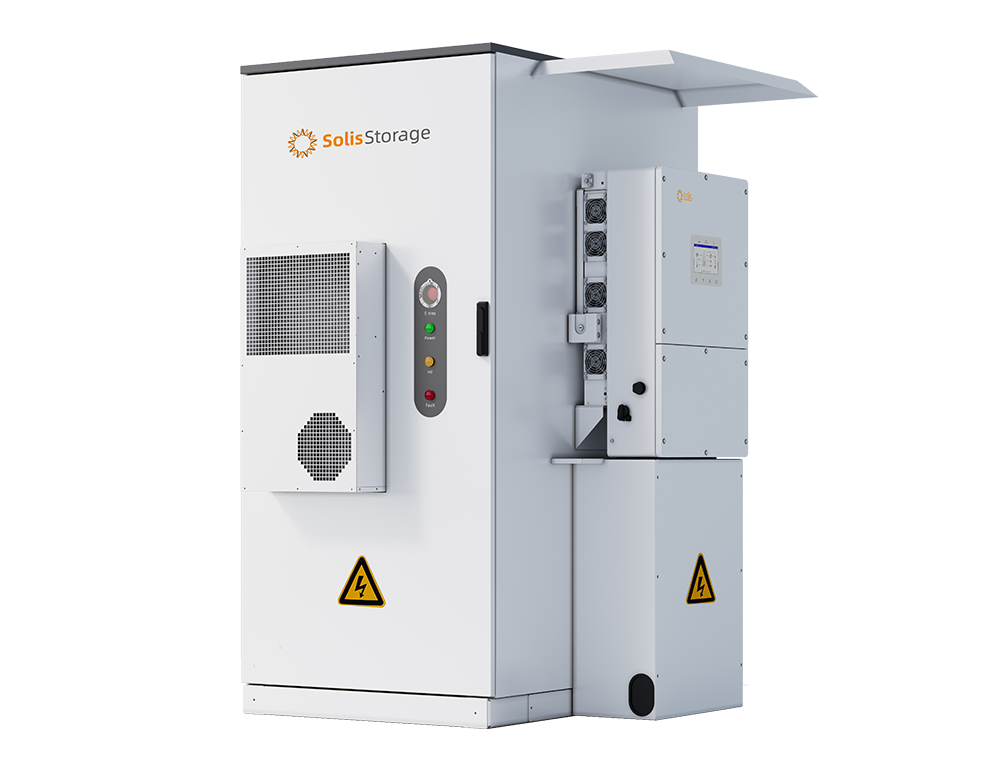

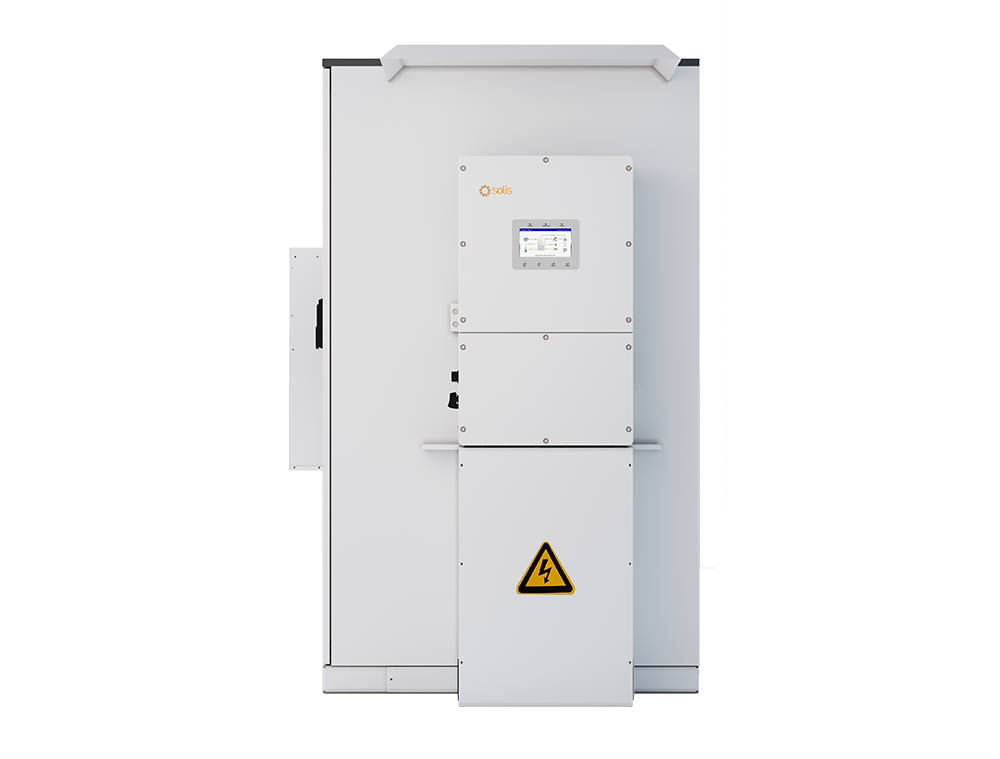

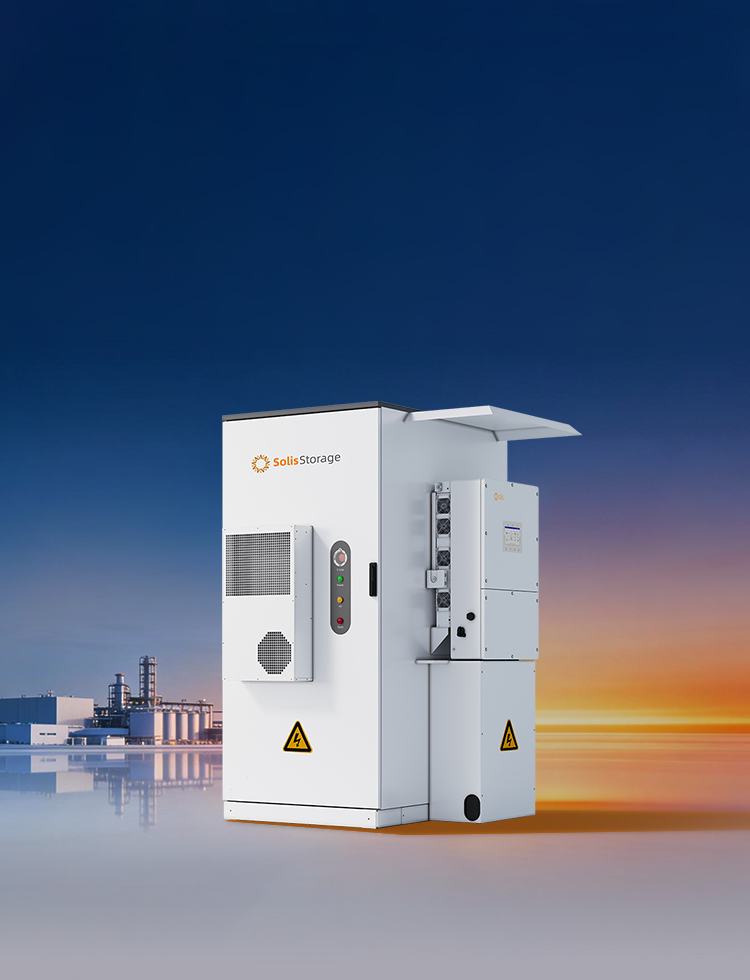

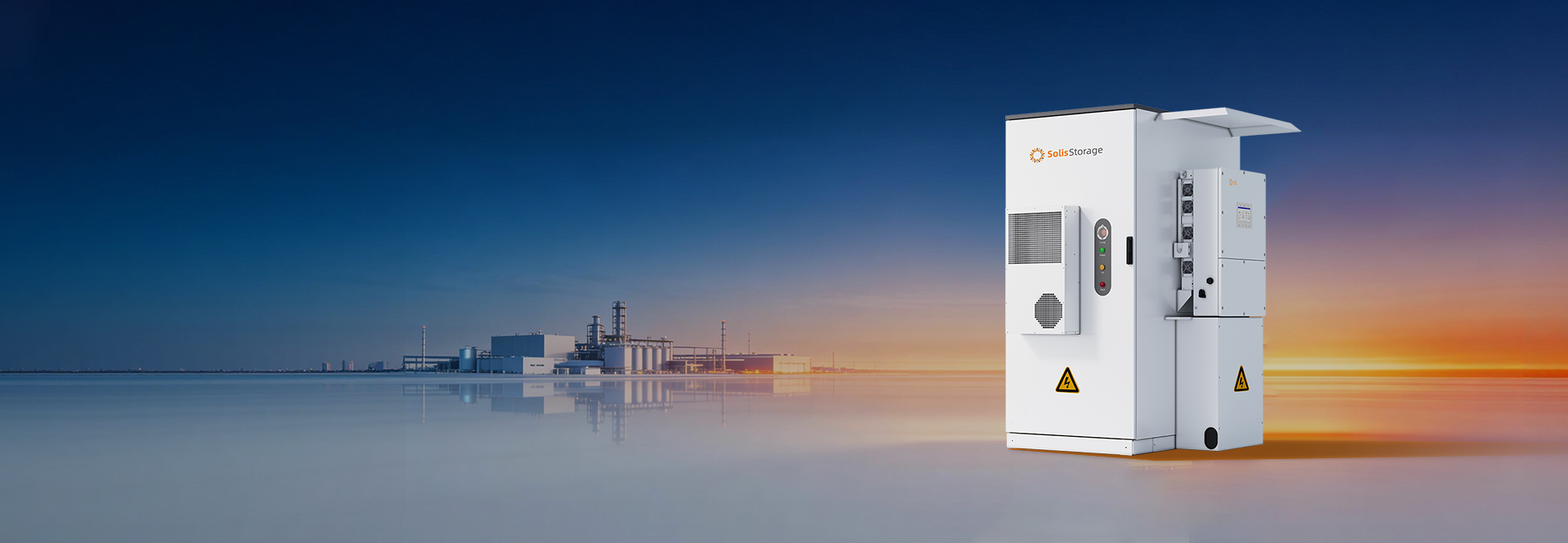

PrimePower-109kWh-50kW-NV
PrimePower-109kWh-50kW-NV
The PrimePower series is designed for various C&I applications, including industrial parks and commercial complexes. With a single-unit power output of 50kW and a storage capacity of 109kWh, it delivers uninterrupted PV-storage power for C&I settings. The entire cabinet features sophisticated intelligent thermal management control, with both the system and battery packs utilizing a dual-layer cooling system comprising air conditioning and fans. Standard C5 corrosion resistance and IP55 protection rating enable outdoor installation. Supports PV integration and various EMS energy management strategies, achieving grid-connected/off-grid switching within 10ms. This solution drives the diversified development of C&I energy storage.
Rated energy capacity ：109.7kWh
Inverter Power Rating：50kW
Cell type：CATL, LFP 3.2V / 306Ah
Cell cycle life：10000
Anti-corrosion class：IP55(Cabinet)+IP66(Inverter)
Uses high-capacity 306Ah CATL cells for exceptional performance and reliability
Features an aluminium alloy baseplate with patented natural cooling and IP67 protection
Fan-less design means no regular maintenance, with a flammable gas detector that stays accurate for 10 years
14 layers of escalating protection — from the cell, through the pack, to the entire system
Zero heat transfer between inverter and cells enhances stability and extends lifespan
Supports 13 operating modes under both strong and weak grid conditions
Switches between on-grid and off-grid in under 10 milliseconds to prevent interruptions
Flexible system expansion, up to 500kW/6.5MWh to meet growing energy needs
Enables remote monitoring and over-the-air updates via SolisStorage Cloud
