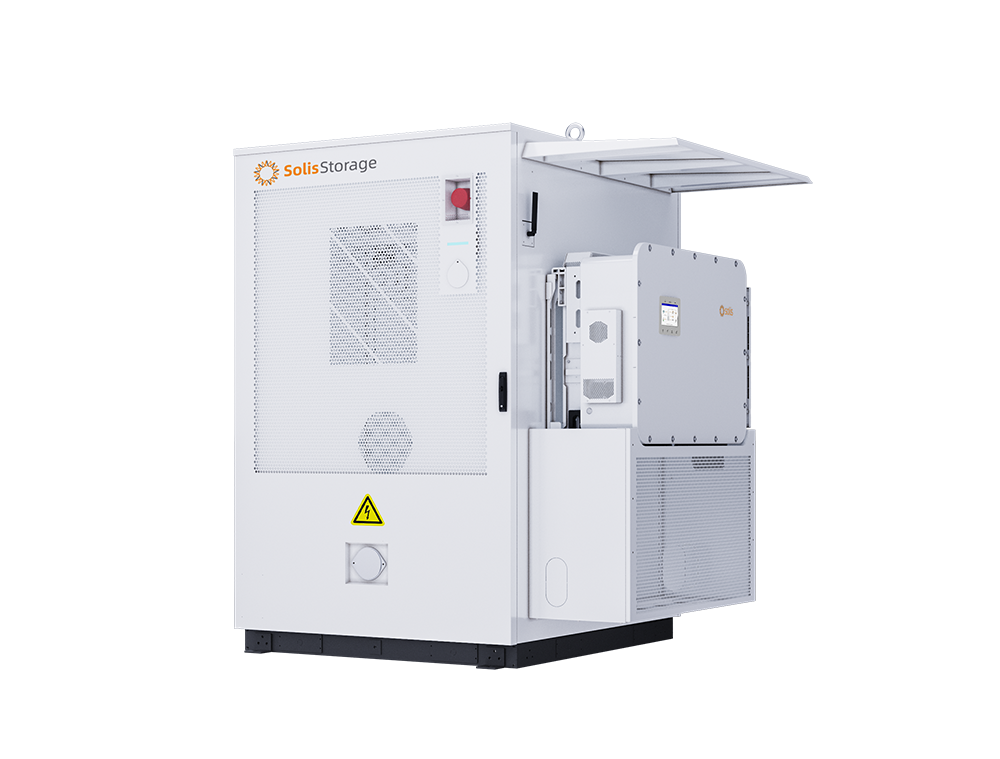

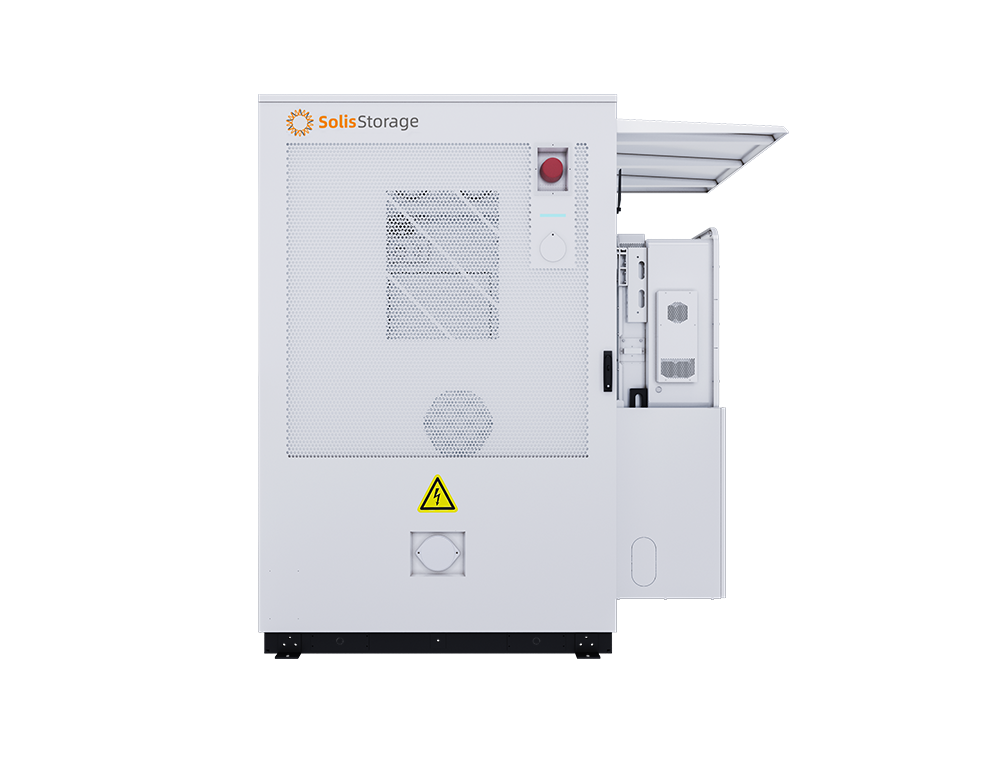

EverCore-261kWh-(60-75)kW-LV
261kWh-60kW / 261kWh-75kW
EverCore-261kWh-(60-75)kW-LV
The EverCore-261kWh-(60-75)kW-LV series is a PV-storage integrated unit designed for 230VAC three phase C&I systems, output power is 60~75kW per unit with a storage capacity of 100kWh. It provides uninterrupted PV-storage power for C&I settings. This highly integrated hybrid energy storage system combines five functions: PCS charging/discharging, grid-connected PV power generation, off-grid diesel generator switching, EMS, and energy storage.
It supports parallel connection of up to 10 units to form larger-capacity storage systems. Combining high power output with flexible scalability, the system can be installed by personnel trained in standard PV string inverter commissioning. It offers easy installation, high cost-effectiveness, and minimal maintenance, making it the preferred high-efficiency solution for 230VAC three phase C&I energy storage applications.
Rated energy capacity: 261.2kWh
Inverter Power Rating: 60kW / 70kW
Cell type: EVE, LFP 3.2V / 314Ah
Cell cycle life: 8000
Anti-corrosion class: IP55(Cabinet)+IP66(Inverter)
True AC/DC Separation
• A fully decoupled AC and DC architecture delivering physical, thermal, electrical, and protective separation.
• Designed to mirror standard PV installation methods, making installation simpler, safer, and instantly familiar for installers.
Ultra-Fast Backup Power
• Backup power switching in ≤10 ms, providing seamless continuity for critical loads as a built-in feature — not an add-on.
True Hybrid Flexibility (New & Existing PV)
• The multifunctional hybrid design supports rapid connection to both new and existing PV systems.
• For retrofit projects, existing PV strings can be connected directly to the hybrid inverter’s PV input — even if the original PV inverter fails — avoiding costly replacements.
Simplified Installation & Low-Maintenance Design
• The AC/DC separation architecture follows conventional PV installation principles for fast, safe deployment.
• An air-cooled thermal management system with high-quality, industry-proven fans ensures stable operation and long service life, enabling up to 10 years of maintenance-free operation.
Multi-Layer Safety Architecture
• Comprehensive safety protection across cell, pack, and system level, with continuous monitoring and multi-stage protection mechanisms.
High Performance & Long-Life Storage
• Supports up to 2× PV oversizing, maximising solar yield.
• Built using top 1 battery cell suppliers to deliver extended cycle life and higher lifetime energy throughput.
Industrial-Grade Reliability
• IP65-rated electronics provide enhanced protection against dust and moisture, significantly reducing failure rates compared to traditional IP20 PCS designs.
