EverCore-(100-261)kWh
100kWh / 120kWh / 261kWh
EverCore-(100-261)kWh

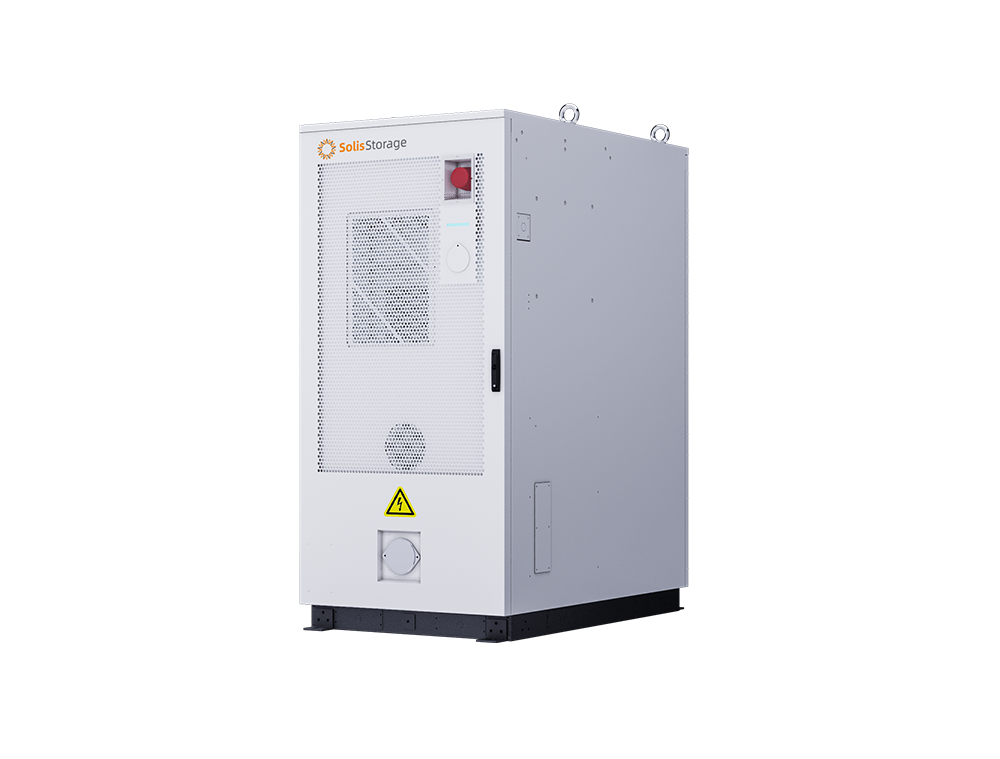

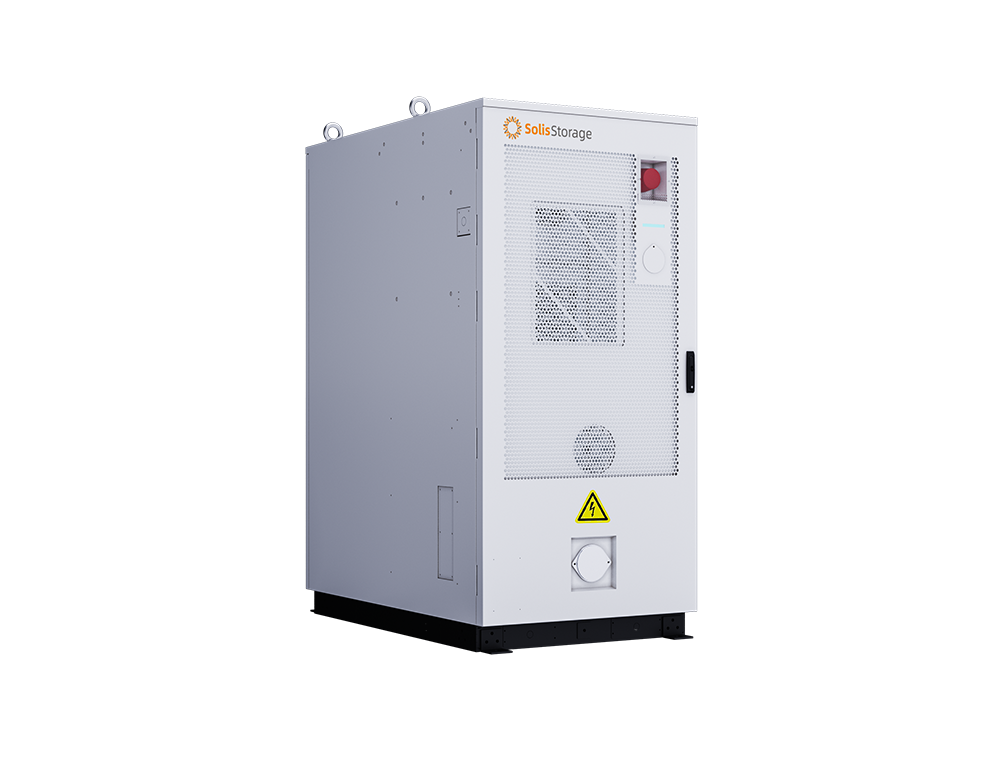

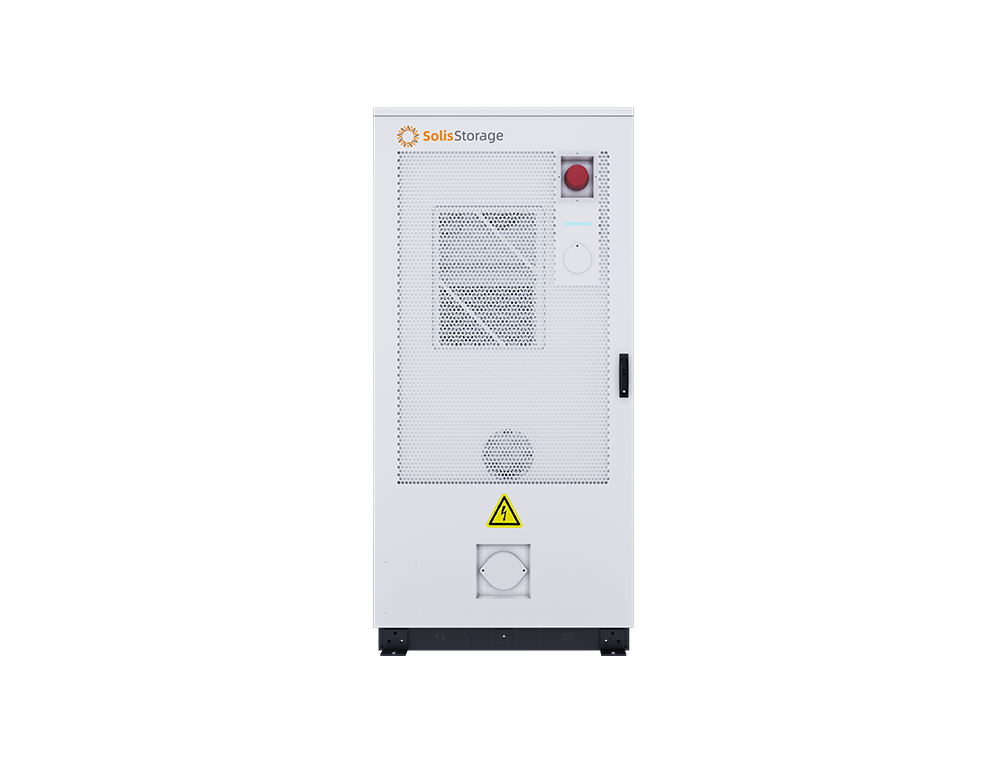

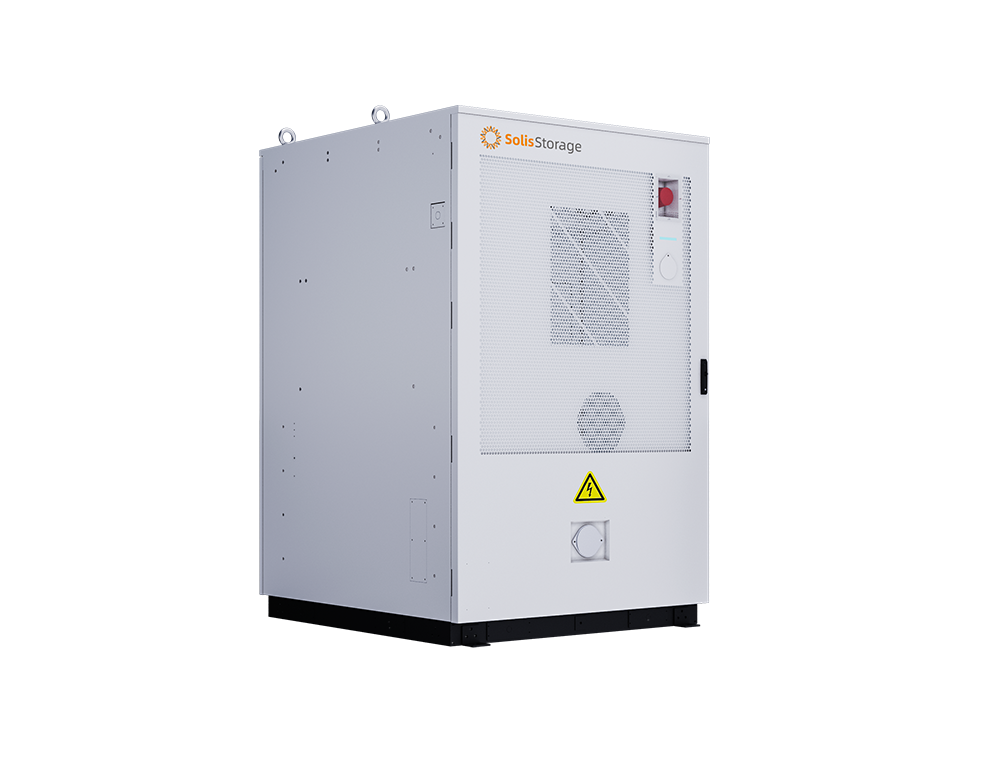

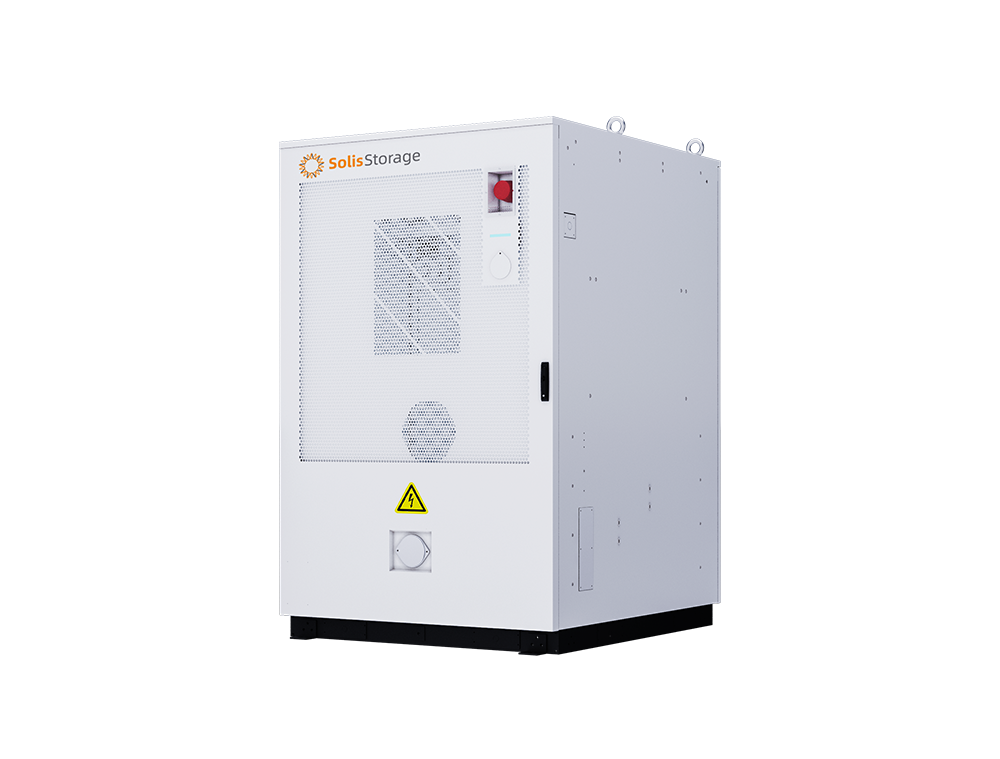

Solis EverCore-(100-261)kWh Series Commercial Outdoor Battery Cabinet features a new structural design, perfectly compatible with our EverCore series energy storage inverters. It supports various applications including grid-connected, hybrid grid-connected/off-grid, and pure off-grid systems. The modular battery cabinet design allows flexible capacity expansion with convenient installation and maintenance. The cabinet integrates a dual cooling system with fans and air conditioning. Featuring explosion-proof construction, it ensures safety and reliability, delivering high return on investment for customers.
Rated energy capacity: 100.5kWh
Max. cycle rate: 0.5P
Usable energy capacity①: 99.3kWh
Ingress protection: IP55
Cell type: LFP 3.2V / 314Ah
Cell cycle life②: 8000
System battery configuration: 1P100S
Rated voltage: 320V
Operating voltage range: 290 ~ 360V
Rated DC current: 157A
Number of battery packs: 5
Battery pack capacity: 20.1kWh
Rated energy capacity: 120.6kWh
Max. cycle rate: 0.5P
Usable energy capacity①: 119.2kWh
Ingress protection: IP55
Cell type: LFP 3.2V / 314Ah
Cell cycle life②: 8000
System battery configuration: 1P120S
Rated voltage: 384V
Operating voltage range: 348 ~ 432V
Rated DC current: 157A
Number of battery packs: 6
Battery pack capacity: 20.1kWh
Rated energy capacity①: 261.2kWh
Max. cycle rate: 0.5P
Usable energy capacity①: 258.3kWh
Ingress protection: IP55
Cell type: LFP 3.2V / 314Ah
Cell cycle life②: 8000
System battery configuration: 1P260S
Rated voltage: 832V
Operating voltage range: 754 ~ 936V
Rated DC current: 157A
Number of battery packs: 13
Battery pack capacity: 20.1kWh
① 30°C~35°C, 0.3C, 100%DOD, within one month from the date of manufacture.
② This is provided by the battery cell manufacturer. Based on cell test condition of 25±2°C, 0.5P charge and discharge rate and SOH=70%
15-level safety protection across cell, pack, and system, supported by integrated detection, warning.
Highly integrated all-in-one design with IP55 protection rating and C5 anti-corrosion rating (optional), enabling flexible battery expansion and one-click high/low-voltage plug-and-play connections, similar to PV installations.
Premium battery cells sourced from a top-tier (Top 2) industry supplier, delivering greater reliability in cycle life and safety; system-level optimization can also be referenced.
High-efficiency thermal management design: Pack-level airflow optimized using the Coandă effect, improving thermal management efficiency by 30%; Cabinet-level proprietary airflow design ensures a cluster temperature difference ≤ 5°C; Air-cooling system offers easier operation and maintenance.
SOC calibration-free design and calibration-free combustible gas detectors, reducing maintenance requirements.
Supports flexible expansion of 1–6 battery units, with a maximum energy capacity of 1,566 kWh per system.
