IntelliHouse Wall/Floor Mounted Energy Storage Systems

IntlliHouse

5-16kWh Low Voltage Batteries / 3-20kW Hybrid Inverters

Product Introduction

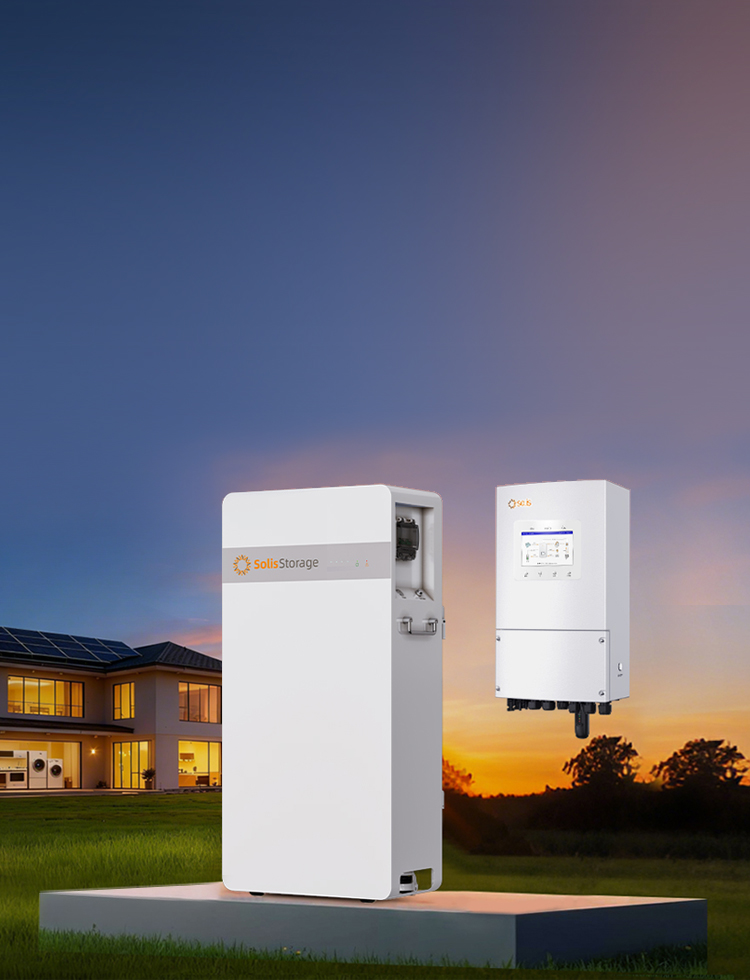

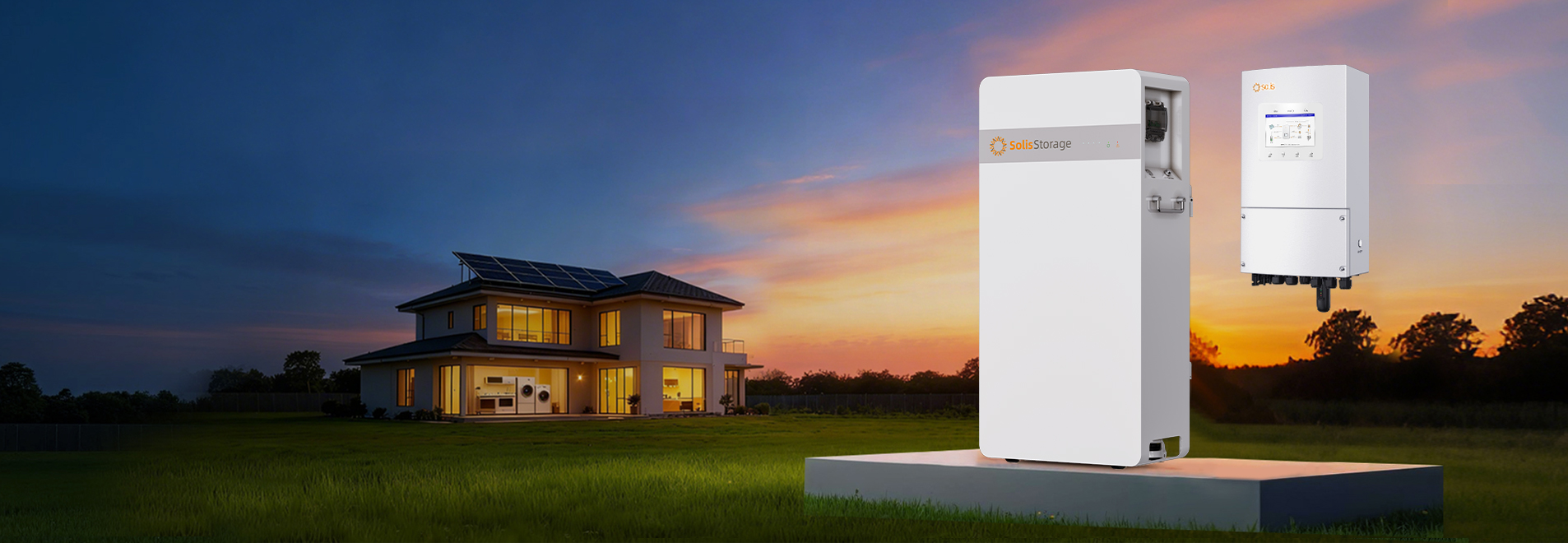

The IntlliHoue series is SolisStorage's complete "storage inverter + battery" solution for residential use. It features a range of storage inverters and battery products with a sleek, modern design that saves floor space. The system supports either wall-mounted or floor-standing installation. It offers three capacity options: 5kWh, 10kWh, and 16kWh, paired with 5–20kW low-voltage (51.2 VDC) storage inverters. Up to 8 units can be connected in parallel, expanding the total capacity to a maximum of 128kWh. The core storage cells are sourced from Top 2 brands, delivering 6,000+ cycles, and are complemented by comprehensive safety protection measures to ensure reliability throughout the lifecycle. This solution is ideal for new PV + storage installations, backup power applications, and storage retrofitting. With its ultra-thin aesthetic design and smart home integration, it allows users to fully enjoy a green energy lifestyle.

Technical Specifications

IntelliHouse-(5-16)kWh S6-EH1P(3-10)K-L-PLUS S6-EH1P(12-18)K03-NV-YD-L S6-EH3P(5-18)K02-NV-YD-L

    Low Voltage Batteries

    Battery type: LiFePO4

    Nominal capacity: 5kWh / 10kWh / 16kWh

    Operating voltage: 44.8 - 57.6V

    Cell capacity: 100Ah / 314 Ah

    Recommended charge/discharge current: 50A  / 100A / 157A

    Cycle life: ≥6000

    Ingress protection: IP66

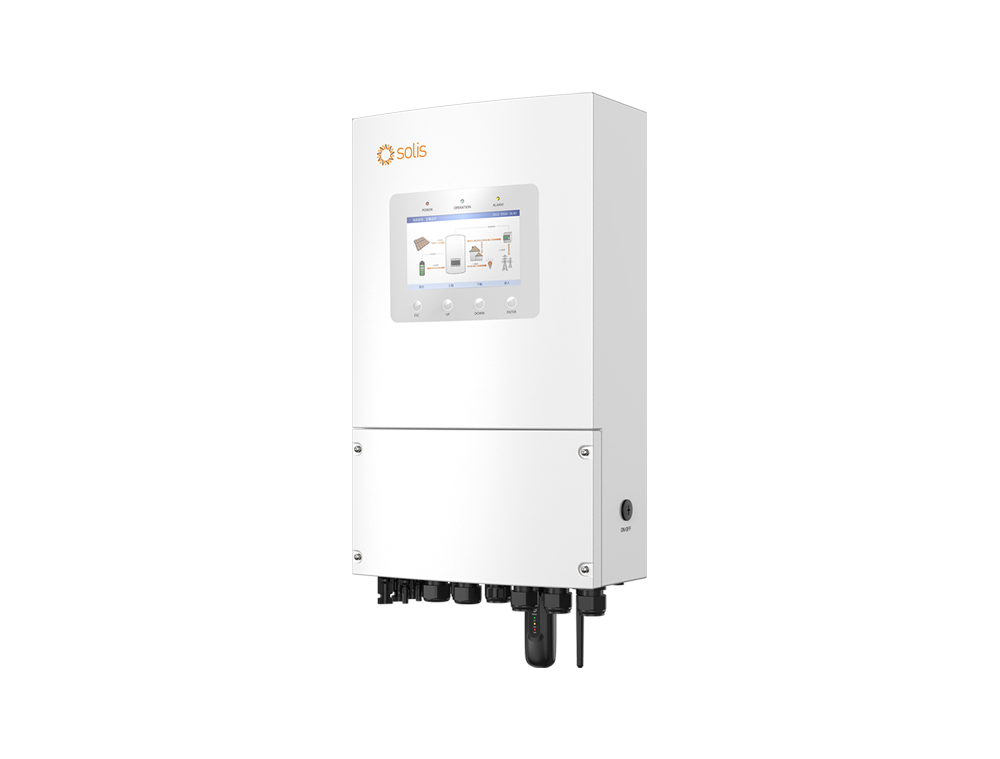

    Single Phase Hybrid Inverters

    MPPT voltage range 90 - 435V

    MPPT number : 2

    Max. input strings number: 2/4

    Rated output power: 3kW 3.6kW / 4.6kW / 5kW / 6kW / 8kW / 9kW / 10kW

    Rated grid voltage: L/N/PE, 220V / 230V

    Ingress protection: IP66

    Single Phase Hybrid Inverters

    MPPT voltage range: 80 - 520V

    MPPT number : 3

    Max. input strings number: 6

    Rated output power: 12kW / 14kW / 16kW / 18kW

    Rated grid voltage: 220V / 230V

    Ingress protection: IP66

    Three Phase Hybrid Inverters

    MPPT voltage range: 200 - 850V

    MPPT number : 2

    Max. input strings number: 2 / 3 / 4

    Rated output power: 8kW / 10kW / 12kW / 15kW / 18kW

    Rated grid voltage: 3/N/PE, 220V / 380V; 3/N/PE, 230V / 400V

    Ingress protection: IP66

Leading Features

Ultimate security ● Using high-quality battery cells to ensure lifecycle safety ● From battery cells to system-level multi-layer redundancy safety, avoiding failure risks ● Multiple redundant safety controls from the inverter, strengthening battery protection ● 51.2V safe low-voltage system design, no arcing or electric shock risk

Convenient & flexible ● Easy to transport, plug and play, rapid deployment in 15 minutes ● 5, 10, 16 kWh single unit capacity, flexible expansion on the DC side up to 128 kWh ● One system, one interface, supports OTA, convenient management, efficient O&M

Powerful performance ● Cycle life ≥ 6000 times, higher returns over the lifecycle ● IP66 C5M, suitable for all environments ● One system, all scenarios, covering 13 types of household storage application scenarios ● 160% PV utilization rate, PV overcapacity with zero waste

Diverse scenarios ● <10ms seamless off-grid switching, uninterrupted power supply guarantee ● Intelligent control of diesel generator access to ensure continuous power supply ● 200% overload capability, to support demanding loads ● Solis AI collaboration empowers efficient operations across multiple scenarios
